PART NO.

规格/编码

ITEM NO.

品名型号

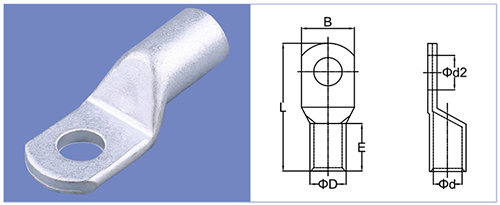

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

HUP6M5

HUP6-5

5.3

10

27.5

6.5

3.5

9

HUP6M6

HUP6-6

6.5

12

27.5

HUP6M8

HUP6-8

8.5

15

33

HUP6M10

HUP6-10

10.5

17

37

HUP6M12

HUP6-12

13

19

41

HUP10M5

HUP10-5

5.3

12

28.5

7

4.5

10

HUP10M6

HUP10-6

6.5

12

28.5

HUP10M8

HUP10-8

8.5

15

35

HUP10M10

HUP10-10

10.5

17

39

HUP10M12

HUP10-12

13

19

42

HUP16M5

HUP16-5

5.3

12

32.5

8.5

5.5

13

HUP16M6

HUP16-6

6.5

12

33.3

HUP16M8

HUP16-8

8.5

15

37.5

HUP16M10

HUP16-10

10.5

17

41.5

HUP16M12

HUP16-12

13

19

45

HUP16M14

HUP16-14

15

21

45

HUP25M5

HUP25-5

5.3

14

37.5

10

7

15

HUP25M6

HUP25-6

6.5

14

37.5

HUP25M8

HUP25-8

8.5

16

42

HUP25M10

HUP25-10

10.5

18

46

HUP25M12

HUP25-12

13

19

48

HUP25M14

HUP25-14

15

21

52.5

HUP35M6

HUP35-6

6.5

17

39.5

12

8.5

17

HUP35M8

HUP35-8

8.5

17

44

HUP35M10

HUP35-10

10.5

19

49

HUP35M12

HUP35-12

13

21

51

HUP35M14

HUP35-14

15

21

54.5

HUP35M16

HUP35-16

17

26

58

HUP50M6

HUP50-6

6.5

20

47

14

10

19

HUP50M8

HUP50-8

8.5

20

47

HUP50M10

HUP50-10

10.5

20

51

HUP50M12

HUP50-12

13

23

56

HUP50M14

HUP50-14

15

23

59.5

HUP50M16

HUP50-16

17

28

62

HUP50M20

HUP50-20

21

30

67

HUP70M6

HUP70-6

6.5

23.5

53

16.5

12

21

HUP70M8

HUP70-8

8.5

23.5

53

HUP70M10

HUP70-10

10.5

23.5

56

HUP70M12

HUP70-12

13

23.5

59

HUP70M14

HUP70-14

15

23.5

62.5

PART NO.

规格/编码

ITEM NO.

品名型号

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

HUP70M16

HUP70-16

17

28

66

16.5

12

21

HUP70M20

HUP70-20

21

30

72

HUP95M8

HUP95-8

8.5

26

60

18

13.5

25

HUP95M10

HUP95-10

10.5

26

60

HUP95M12

HUP95-12

13

26

62

HUP95M14

HUP95-14

15

26

65.5

HUP95M16

HUP95-16

17

28

70

HUP95M20

HUP95-20

21

36

82

26

HUP120M8

HUP120-8

8.5

28

65

19.5

15

26

HUP120M10

HUP120-10

10.5

28

65

HUP120M12

HUP120-12

13

28

65

HUP120M14

HUP120-14

15

28

67

HUP120M16

HUP120-16

17

30

70

HUP120M20

HUP120-20

21

36

85

28

HUP150M8

HUP150-8

8.5

30.5

70

21

16.5

30

HUP150M10

HUP150-10

10.5

30.5

72

HUP150M12

HUP150-12

13

30.5

72

HUP150M14

HUP150-14

15

30.5

72

HUP150M16

HUP150-16

17

30.5

74

HUP150M20

HUP150-20

21

36

88

HUP185M10

HUP185-10

10.5

35

83

24

19

30

HUP185M12

HUP185-12

13

35

83

HUP185M14

HUP185-14

15

35

83

HUP185M16

HUP185-16

17

35

83

HUP185M20

HUP185-20

21

39

91

HUP240M10

HUP240-10

10.5

38

93.5

26

21

35

HUP240M12

HUP240-12

13

38

93.5

HUP240M14

HUP240-14

15

38

93.5

HUP240M16

HUP240-16

17

38

93.5

HUP240M20

HUP240-20

21

38

93.5

HUP300M12

HUP300-12

13

43

111

29.5

23.5

44

HUP300M14

HUP300-14

15

43

111

HUP300M16

HUP300-16

17

43

111

HUP300M20

HUP300-20

21

43

111

HUP400M12

HUP400-12

13

49.5

114

34

27

44

HUP400M14

HUP400-14

15

49.5

114

HUP400M16

HUP400-16

17

49.5

114

HUP400M20

HUP400-20

21

49.5

114
