PART NO.

规格/编码

ITEM NO.

品名型号

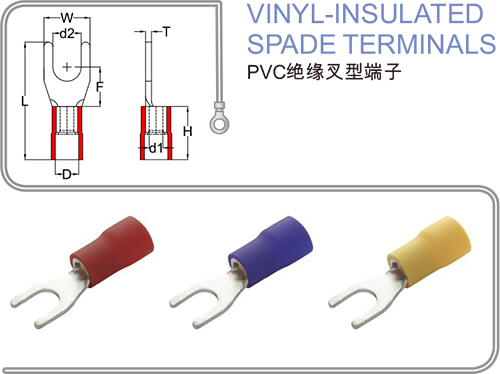

尺寸DIMENSIONS(mm)

WIRE RANGE

电线范围

A .W.G.mm²

d 2

W

F

L

H

d 1

D

T

VS1.25M3

VS1.25-3

3.2

5.7

6.50

21.20

10.0

1.7

4.2

0.7

22-16 A.W.G.

0.5-1.5 mm²

VS1.25M3.5S

VS1.25-3.5S

3.7

VS1.25M3.5M

VS1.25-3.5M

3.7

6.4

VS1.25M4S

VS1.25-4S

4.3

6.4

VS1.25M4M

VS1.25-4M

4.3

7.2

VS1.25M4L

VS1.25-4L

4.3

8.1

VS1.25M5S

VS1.25-5S

5.3

VS1.25M5L

VS1.25-5L

5.3

9.5

VS1.25M6S

VS1.25-6S

6.4

VS1.25M6L

VS1.25-6L

6.4

12.0

VS1.25M8

VS1.25-8

8.4

13.5

VS2M3

VS2-3

3.2

5.7

11.00

27.20

10.0

2.3

4.7

0.8

16-14 A.W.G.

1.5-2.5mm²

VS2M3.5S

VS2-3.5S

3.7

11.50

26.70

VS2M3.5L

VS2-3.5L

3.7

6.0

6.50

21.20

VS2M4S

VS2-4S

4.3

6.4

VS2M4M

VS2-4M

4.3

7.2

VS2M4L

VS2-4L

4.3

8.1

VS2M5S

VS2-5S

5.3

VS2M5L

VS2-5L

5.3

9.5

VS2M6S

VS2-6S

6.4

VS2M6L

VS2-6L

6.4

12.0

11.00

27.20

VS2M8

VS2-8

8.4

13.5

11.50

27.00

VS3.5M3.5

VS3.5-3.5

3.7

8.0

7.70

25.30

13.0

2.9

6.2

1.0

14-12 A.W.G.

2.5-4mm²

VS3.5M4

VS3.5-4

4.3

VS3.5M5

VS3.5-5

5.3

VS3.5M6

VS3.5-6

8.4

12.0

9.10

28.50

VS3.5M8

VS3.5-8

8.4

14.0

11.50

30.70

VS5.5M3.5

VS5.5-3.5

3.7

8.3

7.00

25.5

13.0

3.4

6.5

1.0

12-10 A.W.G.

4-6mm²

VS5.5M4S

VS5.5-4S

4.3

8.3

7.00

25.5

VS5.5M4L

VS5.5-4L

4.3

9.0

VS5.5M5

VS5.5-5

5.3

VS5.5M6S

VS5.5-6S

6.4

VS5.5M6L

VS5.5-6L

6.4

12.0

12.00

31.7

VS5.5M8

VS5.5-8

8.4

14.0

11.50

30.7

VS8M4

VS8-4

4.3

9.0

7.60

28.3

16.0

4.5

8.0

1.2

8 A.W.G.

6-10mm²

VS8M5

VS8-5

5.3

9.0

8.10

VS8M6

VS8-6

6.4

12.0

9.20

31.3

VS8M8

VS8-8

8.4

13.8

10.70

32.9

VS8M10

VS8-10

10.5

15.9

VS14M4

VS14-4

4.3

9.0

9.50

36.5

21.5

5.8

11.0

1.4

6 A.W.G

10-16mm²

VS14M5

VS14-5

5.3

VS14M6

VS14-6

6.4

11.0

VS14M8

VS14-8

8.4

13.8

10.70

39.5

VS14M10

VS14-10

10.5

15.9

VS22M5

VS22-5

5.3

11.0

9.50

39.3

23.5

7.7

13.0

1.6

4 A.W.G.

16-25mm²

VS22M6

VS22-6

6.4

VS22M8

VS22-8

8.4

16.5

13.50

45.0
